Description

An inverter cable is designed to be used between a power inverter and a battery bank. The Renogy 5ft 4AWG Inverter Cable is flexible and resistant to chemicals; oil; and moisture. Pick up a set of inverter cables and begin powering various electronics and appliances with solar power. Perfect as a replacement piece or spare item; these cables will provide superior performance at a great price.

This product is designed to meet or exceed test requirements called for by Underwriters Laboratories and the National Electric Code. It is recommended for use in accordance with UL and CSA for internal wiring of uninterruptible power supply equipment; UL Standard 1778. It is also suitable for use in transformers; switchboard panels; controls; electronic circuits and meters. It can be used as battery cable; battery charger cable; motor lead; and power hookup cable. Approved for both the internal and external wiring of appliances.

If you have any questions regarding this product, please submit a case.

Key Features

Colored red and black for easy identification.
Stainless steel ring terminals makes installation easy.
Unique flame retardant polyvinyl chloride compound.
Stranded conductors for flexibility.
Resistant to moisture; abrasion; acid; diesel fuel and oil.

Package Includes

Renogy 5ft Inverter Cable for Connecting Inverter to Battery 1 x

Renogy 5Ft 4AWG Inverter Cables (A pair)
Length: 5Ft	AWG: 4
Operating Voltage: 600/1000V	Stranding: Class K 30 gauge bare copper (stranded)
Maximum Operating Temperature: 220°F Dry; 165°F Wet	Ring terminal: Solid Electrolytic Tinned Copper Eyelets; 3/8 stud
Maximum Operating Amp(Amperage): 157A

Renogy 5Ft 4/0AWG Inverter Cables (A pair)
Length: 5Ft	AWG: 4/0AWG
Operating Voltage: 600/1000V	Stranding: Stranded Copper
Maximum Operating Temperature: 220°F Dry, 165°F Wet	Ring terminal: 3/8” metal lugs
Maximum Operating Amp(Amperage): 230A

Warranty Information

Accessories	2-year prorated material and workmanship warranty

Certification

Inverter Cable

Battery Inverter Cables 5ft/1.5M 4AWG/25mm² for 3/8 in Lugs

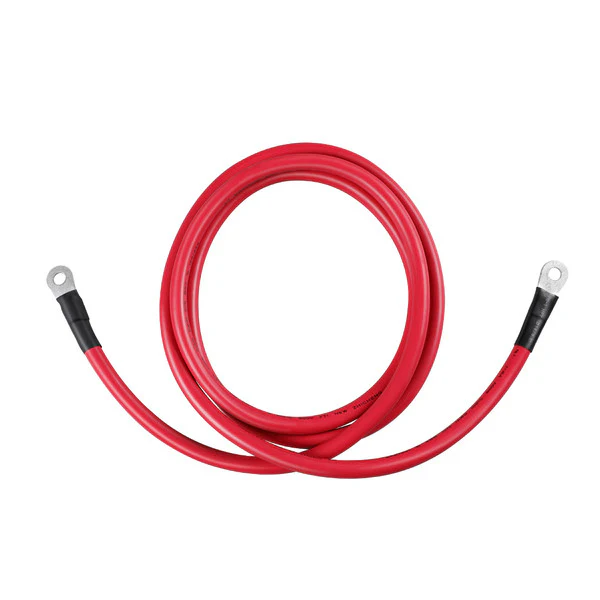

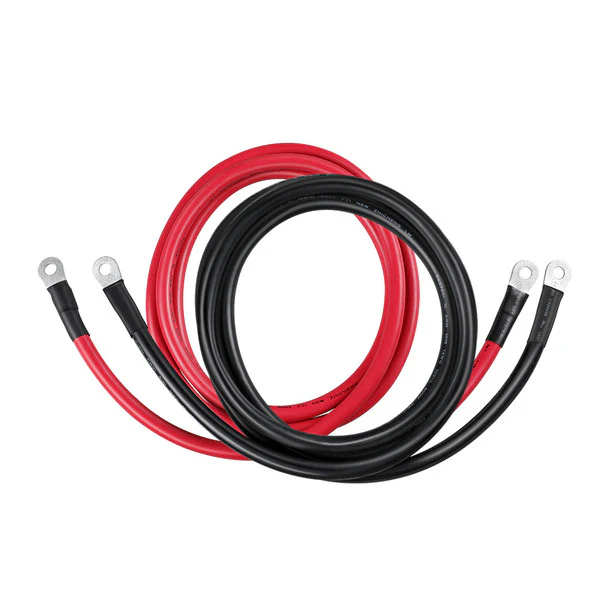

8FT/2.4M 1AWG/50MM² Inverter Cables for 3/8IN Lugs
