Description

The REGO DC-DC Battery Charger's exclusive bidirectional charging technology not only provides the most effective way to charge your house batteries from the starter battery on the go but also recharges and maintains your starter battery when the house batteries are full. The battery charger is compatible with the most popular 12V alternators and batteries. 4-Stage charging provides reliable and effective charging of your batteries. The REGO DC-DC battery charger is ideal for RVs, commercial vehicles, boats, yachts, and vans that need stable energy on the go!

If you have any questions regarding this product, please submit a case.

Key Features

【Exclusive Bidirectional Charging】This battery charger can charge your house batteries from the starter battery when driving and recharge your starter battery when the house batteries are full. Keep your house batteries and starter battery at peak performance on the go.
【Easy Installation and Operation】REGO DC-DC battery chargers use Anderson terminals instead of ring terminals for a simple, easy connection that reduces installation time by 60%! REGO’s simple design eliminates tedious data settings and lets you switch between batteries by just turning a knob. Compatible with Renogy ONE M1 & Core.
【High-Efficiency Charging】4-stage charging technology (Bulk, Float, Absorption and Equalize) maximize charging efficiency and optimizes battery levels for a longer lifespan.
【Compatible with Most Batteries and Alternators】The REGO DC-DC battery charger is compatible with multiple types of batteries: AGM, SLD, Flooded, Gel, and Lithium, providing a powerful solution for different occasions. Moreover, it can interoperate with both traditional and smart alternators.
【Integrated Safety Features】REGO chargers offer Overvoltage Protection, Overtemperature Protection, and Reverse Polarity Protection on both inputs and outputs to ensure operation safety. They have reverse polarity protection and multiple safety certifications including FCC-ID, CE-RED, MIC, etc.

Package Includes

REGO 12V 60A DC-DC Battery Charger x 1

REGO 12V 60A DC-DC Battery Charger
System Voltage：12 V	Rated Max Charge Current：60A
Rated Max Charge Power：800 W	Battery Types：SLD/AGM;FLD;GEL;USER;LI
Self-Consumption：≤50 mA	Max.Alternator Input Current：70A
Charge Efficiency：Up to 94%	Max.Alternator Input Power：800W
Max.Alternator Input Voltage：16V	Battery Operating Range：10 -16V
Alternator Input Voltage：Traditional Alternator: 13.5-16VDC Smart Alternator (Euro 6): 12.5-16VDC	Power Limiting Protection：Up to 800W/12V
Operating Temperature Range：-20 ℃ - 60℃ / -4 ℉ - 140℉	Grounding Type：Common Negative Lug
Storage Temperature Range：-35 ℃ - 65℃/ -31℉ - 149℉	Communication：Modebus ; RV-C
Humidity：0%-95%, No Condensation	Dimensions (L x W x D)：13.91 x 8.37 x 4.02 in / 353.53 X 212.75 X 102.21mm
Temperature Compensation：-3mV / ℃ / 2V (Non-Lithium) '0mV / ℃ / 2V; no compensation (Lithium)	Weight：7 lbs/ 3.12kg
Terminal Size：Anderson PP75	Terminal Range：8AWG - 6AWG
Certifications：
CB	YES
FCC	YES
CE	YES
UKCA	YES
MIC	YES

Warranty Information

Material and workmanship warranty	3-year prorated material and workmanship warranty

1.It seems that this battery charger doesn't have a screen to display data, then how should I check the data and its working status?

The REGO DC-DC Battery Charger with the built-in Bluetooth module allows you to monitor the charging status through Renogy DC Home App by cellphone. You will be able to get the data on the voltage of the starter battery and house battery, the charging current of the battery charger, the reverse charging current, etc.

2. Can I customize the charging current or BOOST voltage?

Yes, customization settings will be available. You may turn the knob on the battery charger to USER Selection and get connected to the Renogy DC Home App to enter the custom setting mode, in which you can set matching charging current or BOOST voltage according to the characteristics of your batteries.

3. What are the requirements for the selected generator in two-way charging?

With the exclusive two-way charing design, two REGO battery chargers can be connected in parallel, and get energy from the starter battery and 12V DC generator at the same time to charge the same house battery. The extra energy sources allow you to obtain extremely stable energy with a shorter charging time and adapt to more diverse usage scenarios. To ensure that the battery charger can work properly, it is recommended that the input power supply current should be 1.5 times that of the charger. For the 60A battery charger, the current of the generator should be at least 90A.

More questions about your off-grid power system? Learn more from Renogy Learning Center!

REGO

Renogy LP16 Plug (7-Pin) 23Ft Communication Cable

REGO 12V 60A MPPT Solar Charge Controller

REGO 12V 60A DC-DC Battery Charger

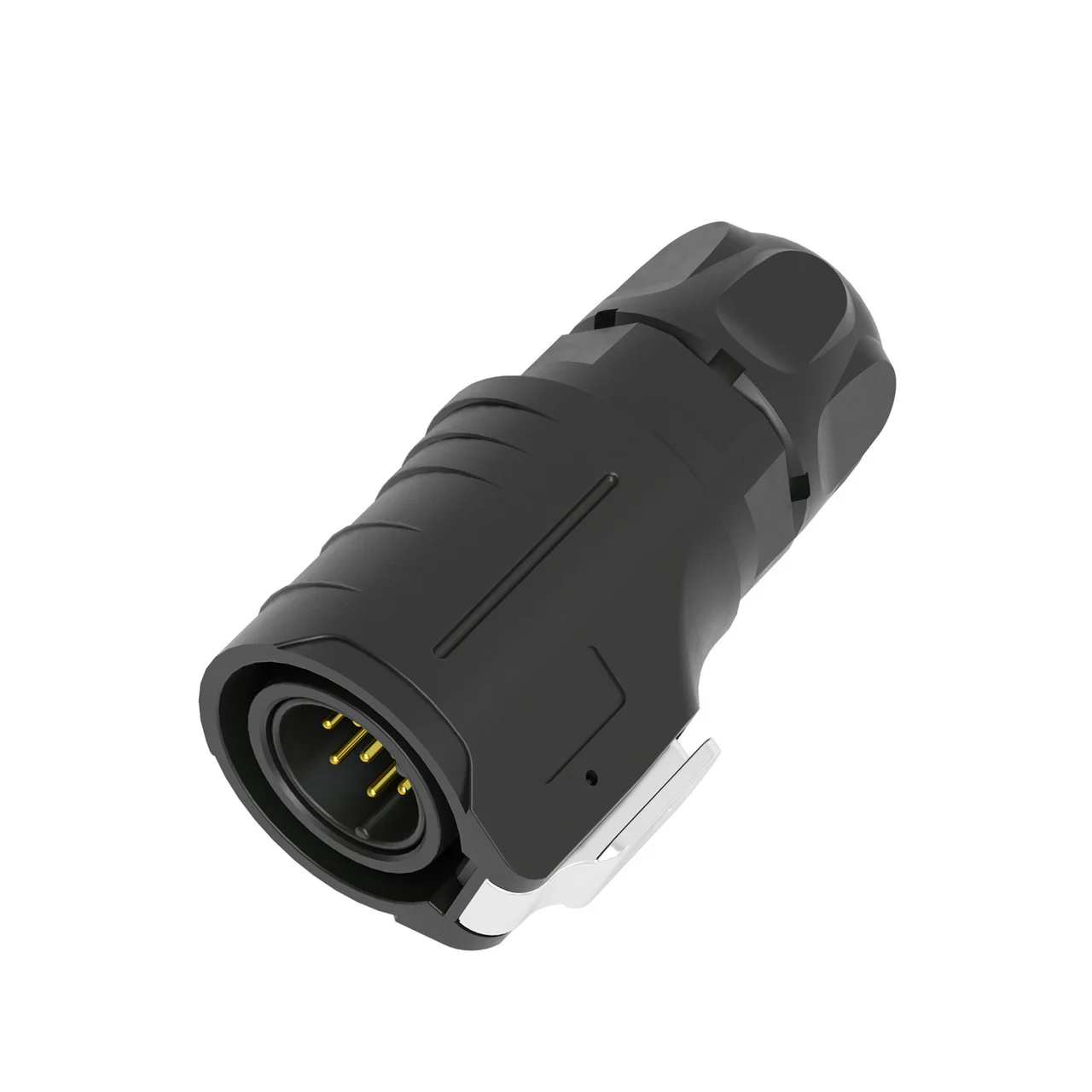

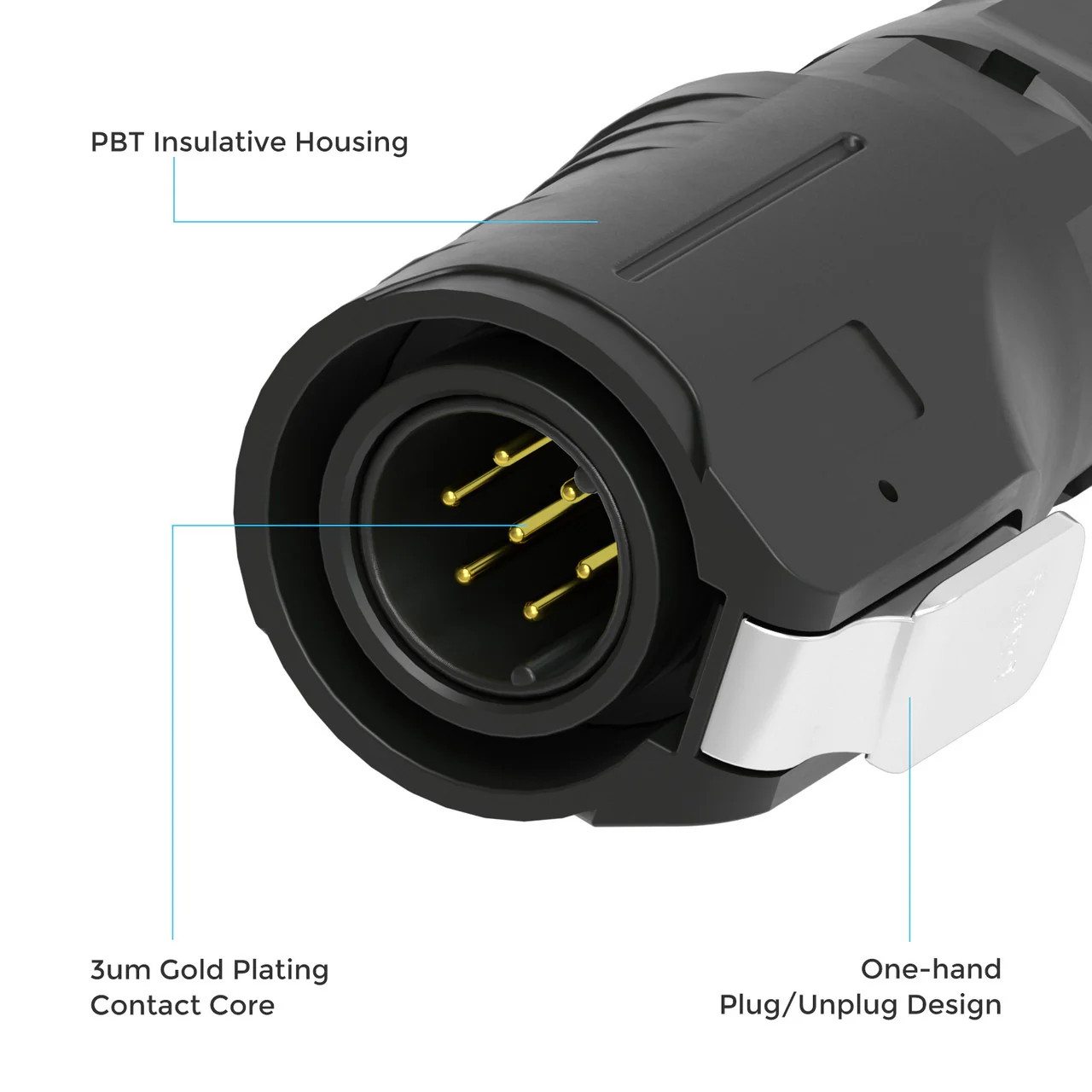

Renogy LP16 Terminator Plug (7-Pin)

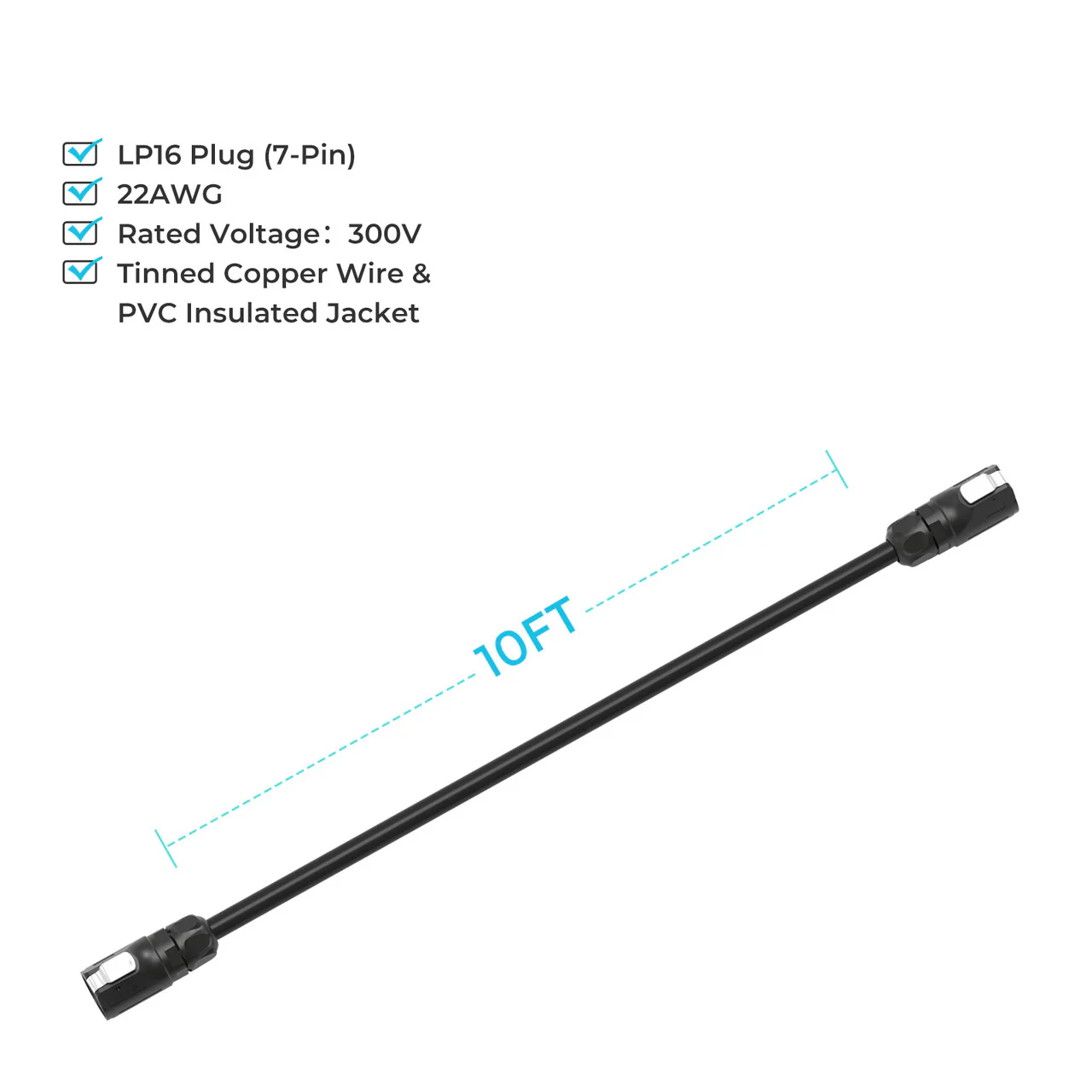

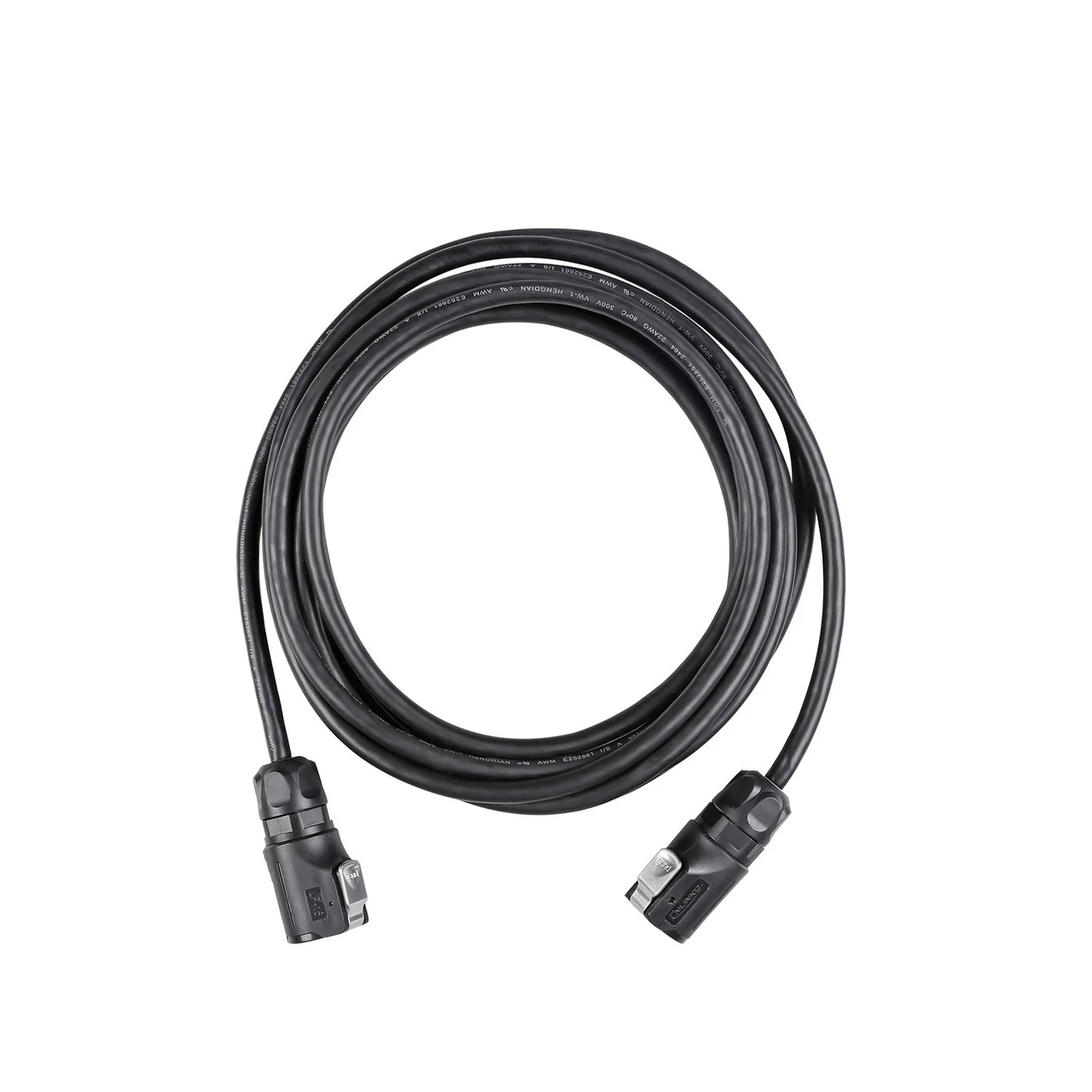

Renogy LP16 Plug (7-Pin) 10Ft Communication Cable

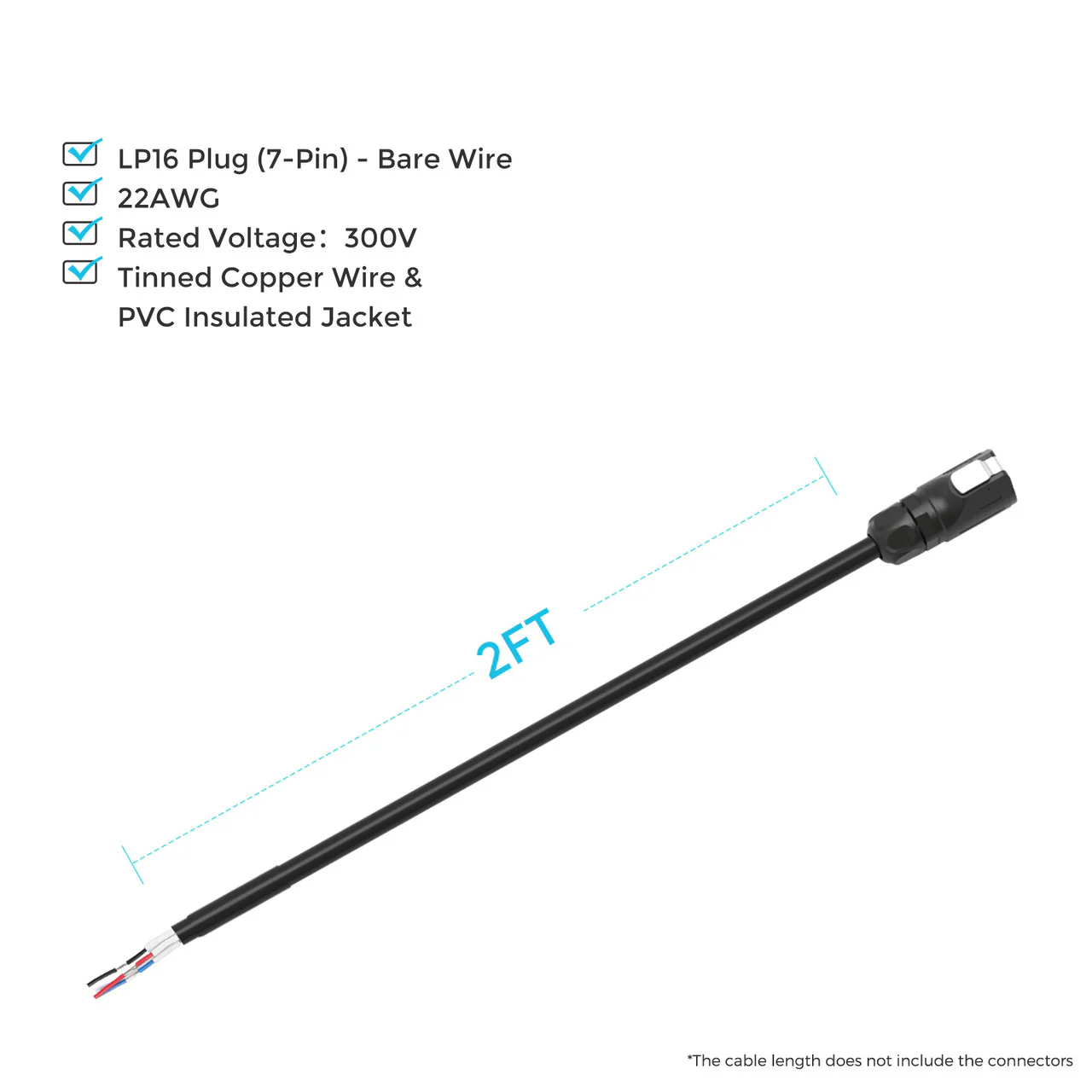

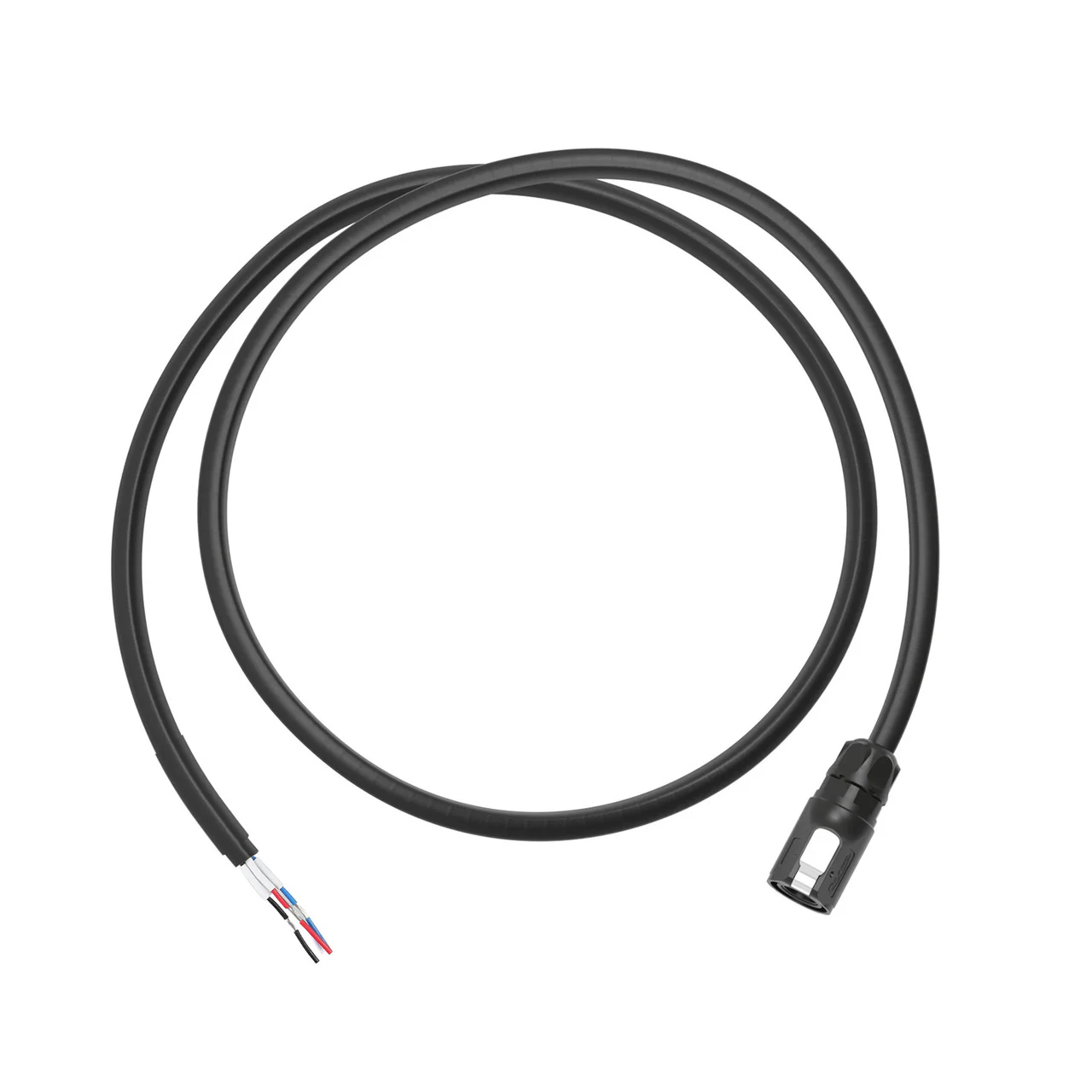

Renogy LP16 Plug (7-Pin) to Bare Wire
