2 to 1 Solar Branch Connectors MMF+FFM Pairā
$13.51
The Story
Ā
Description

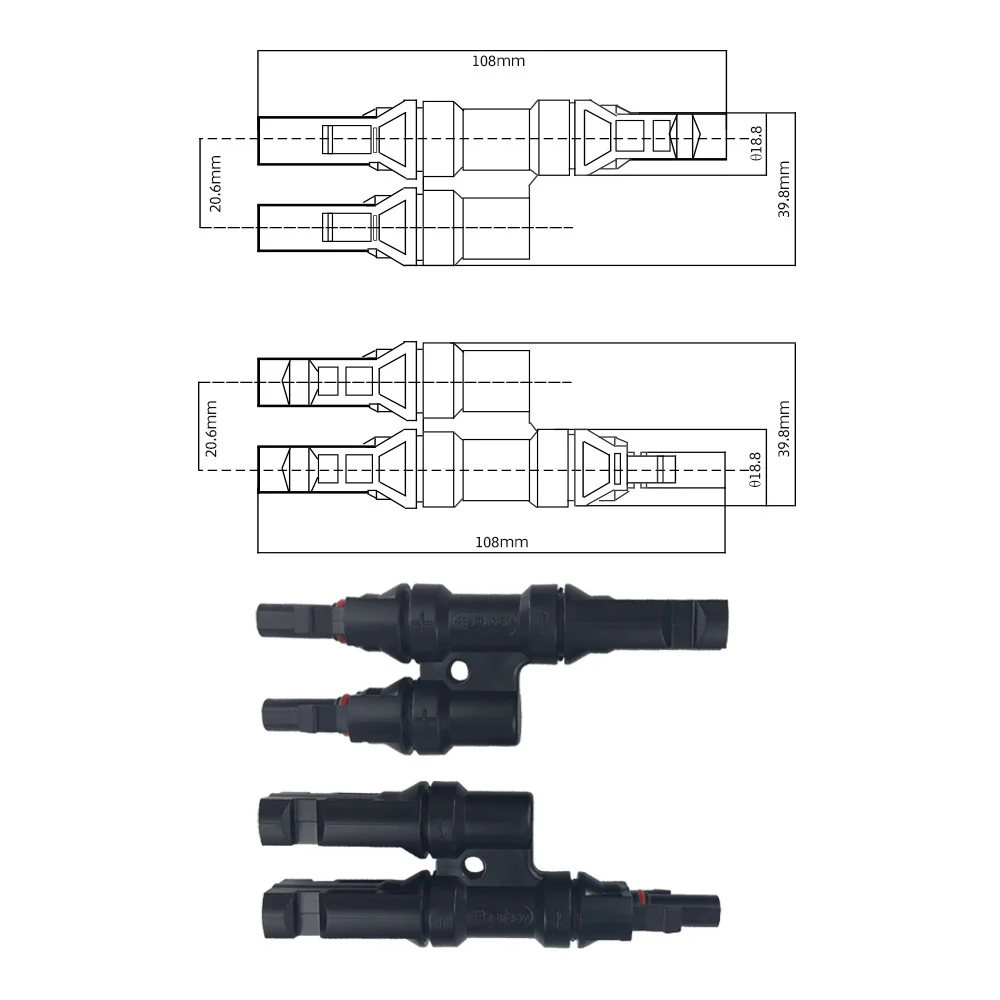

Renogy Solar Branch Connectors are used for parallel wiring solar panels (PV modules). Sold as a pair; these āY-Connectorsā will maintain the voltage of the solar panel configuration to match the battery size. These connectors are solely compatible with solar connectors and come with one male (MMF) and one female (FFM) connector. Use these Solar Branch Connectors to make tight; waterproof connections.
If you have any questions regarding this product, please submit a case.
Key Features
- Hard plastic
- One FFM and one MMF
Package Includes
|
Renogy Solar Branch Connectors MMF+FFM Pair
1 x |
Ā
| Renogy Solar Panel Branch Connectors (Pair) | Ā |
|---|---|
| Withstanding voltage: 1000V DC(TUV); 600V(UL) | Contact Resistance: 1m |
| Protection Class: Class II | Temperature: -40Ā°F to +194Ā°F |
| Protection Degree: IP67; mated | Unmating Force:147.51FtĀ·lb |
| Insulation Material: PC/PA | Contact Material: Copper; silver plated |
| Flame Class: UL94-V0 or UL94-5VA | Ā |
Ā
Warranty Information
| Cables and Wiring |
|
Ā
Certification
 |
Ā
 |
 |
Ā
Details & Craftsmanship
Every detail has been carefully considered to bring you the perfect product.
Details & Craftsmanship
Every detail has been carefully considered to bring you the perfect product.
